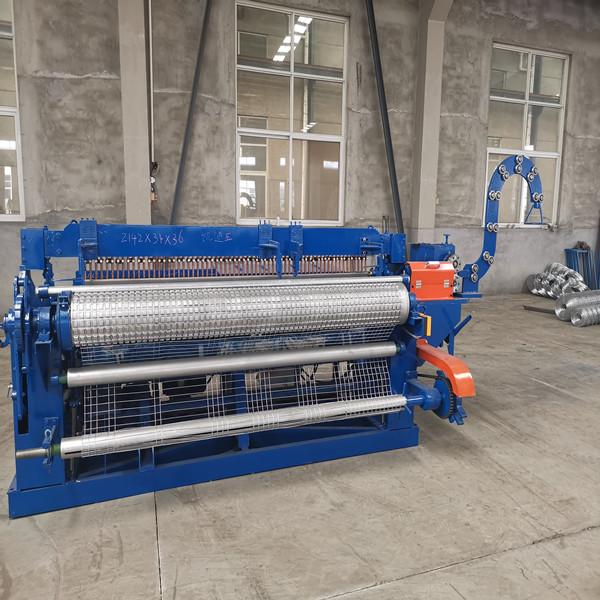

Automatic Electric Galvanized Welded Wire Mesh Machine
1. Product description
Automatic electric galvanized welded wire mesh machine is used for making wire mesh. The feature of the machine is saving materials and high capacity. The button switches to start and stop machine easily. The galvanized iron wire green roll mesh welding machine can be quick and easy roll extraction from the machine.
2. Technical parameter
| Model | Mesh width | Minimum mesh size (inch) | Wire diameter(mm) | Welding speed (rows/min) | Roll mesh length (m) | Other available mesh size (inch) |
| R- DHW | 1-2.5m | 1/2x1/2 | 0.6-1.3 | 90-120 | 110 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 1-2.5m | 1/2x1/2 | 0.8-1.6 | 80-90 | 100 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 1-2.5m | 1x1 | 0.6-1.3 | 90-110 | 110 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 1-2.5m | 1x1 | 0.8-1.6 | 90-110 | 100 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 1-2.5m | 1x1 | 1.4-2.6 | 80-90 | 80 | 1x2, 2x1, 2x2, 2x4 |
3. Application area
The automatic electric galvanized welded wire mesh machine can be widely usded for Wire mesh can be adapted fairly easily to suit different applications and can changes in terms of mesh sizes, configuration, wire gauges and finish. Galvanizing is recommended, especially for heavy duty applications, as it greatly increases the strength of the wire mesh and protects the metal from environmental factors. Computer controlled welding equipment can be used and is advantageous for applications in which mesh opening accuracy is a factor.
4. Advantages
a. This machine is fully automatic to feed wires, weld mesh, cut edge and roll mesh.
b. We use variable frequency from Schneider Siemens to control motor for easy maintenance.
c. Schneider (France) low-voltage apparatus.
d. Delta (Taiwan) variable-frequency drive.
e. We are engaged in wire mesh welding machine for more than 20 years, providing you with the most professional knowledge and the most suitable machine.
